WELDMART SPOOL GUN INTRODUCTION PAGE

FINALLY!: THE  SPOOL GUN YOU CAN AFFORD TO BUY, MAINTAIN, AND KEEP THE REST OF YOUR LIFE!



One of the most useful items in your shop is the "mig spool gun".  This is a mig wire feeder and mig gun in your hand! With this gun you can easily weld, aluminum, stainless steel, carbon steel, aluminum bronze, silicone bronze, or any filler metal on a 4" spool. If you have a special application you can always spool a small amount of wire for a special job.

The Revolution spool gun unique in the "retro-fit" spool gun market. It attached directly to your Snap-On Muscle Migs (and most  Systematics) mig welders. It requires no adapter or separate gun  power supply-just "PLUG & WELD!

Because of the technical nature of this gun it cannot purchased on line. Please call our office to discuss you applications and to place an order. contact information is located at the bottom of this page.

HOW IT WORKS OR WHY DIDN'T I THINK ABOUT THIS????

If you purchase a spool gun from Miller, Lincoln, Esab, Hobart, OTC, Century, Snap-On, or any of the "majors"; the gun will only work with their machines. What if you could buy a spool gun that would work on your existing Mig machine and could be easily and inexpensively modified to work on ANY MIG MACHINE?  NOW YOU CAN!

REVOLUTION SPOOL GUN  (20' Leads) PHOENIX SPOOL GUN  (20' LEADS)
The Revolution Spool gun is designed to feed 025/030 wire. It can weld 035 aluminum wire in limited duty cycle applications. It is idea for mig welding of thinner materials; aluminum, steel, stainless steel, copper, aluminum bronze, and silicon bronze alloys. 150 amps in argon gas. The Phoenix Spool gun is designed to feed 025/030/035 wire. It can weld 3/64" aluminum wire in limited duty cycle applications. It is idea for mig welding of thicker materials; aluminum, steel, stainless steel, copper, aluminum bronze, and silicon bronze alloys. 200 amps in argon, 230 amps in CO2.
Both the revolution and Phoenix spool guns are designed to retrofit to almost any mig welder. You have bought and paid for you mig welder and now need to mig weld aluminum or have the versatility of a spool gun. If your local supplier does have a spool gun that will work with your mig; how much will it cost and how much trouble to adapt it?

These spool guns have a 20' lead with a power pin that fits your machine.



Why you should consider the Weldmart Spool Guns for your Miller Mig Machine
The Weldmart Phoenix Spool gun package for the Miller Mig welder. Note: to adapt the Phoenix Spool gun to another system; you need only to change the gun power pin and the trigger plug.

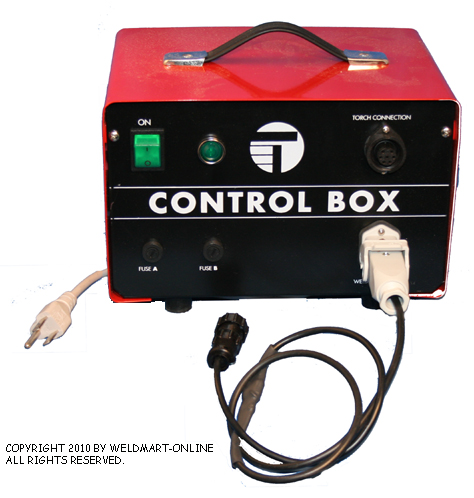

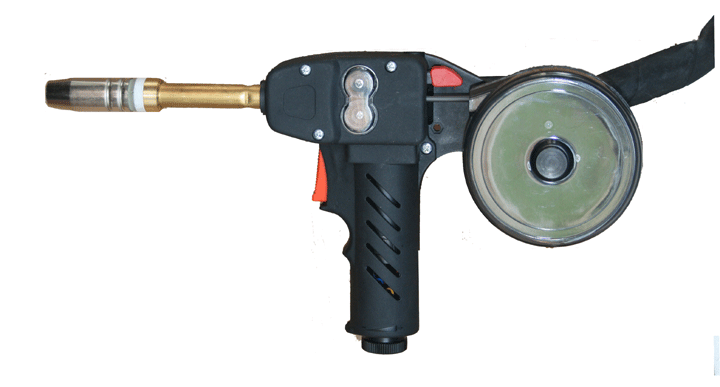

MILLER 252 PHOENIX SPOOL GUN  LEAD WITH MILLER POWER PIN AND CONTROL GUN PLUG PHOENIX SPOOL GUN CONTROL BOX. PHOENIX SPOOL GUN  (25' Leads)

1 YEAR WARRANTY-230 AMPS IN ARGON

Complete Package (Spool Gun & Control Box) - 1 Year Warranty!

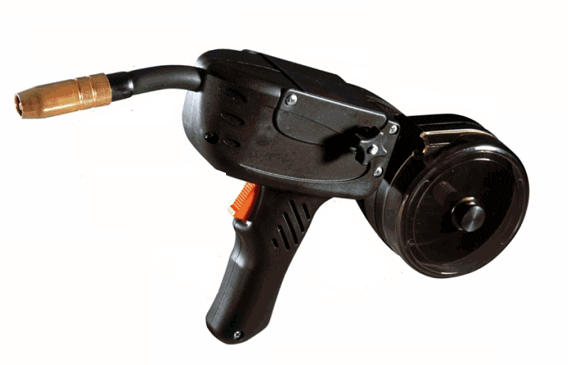

MILLER 252 REVOLUTION  SPOOL GUN  LEAD WITH MILLER POWER PIN AND CONTROL GUN PLUG PHOENIX SPOOL GUN CONTROL BOX.



REVOLUTION SPOOL GUN  (25' Leads)

1 YEAR WARRANTY-150 AMPS IN ARGON

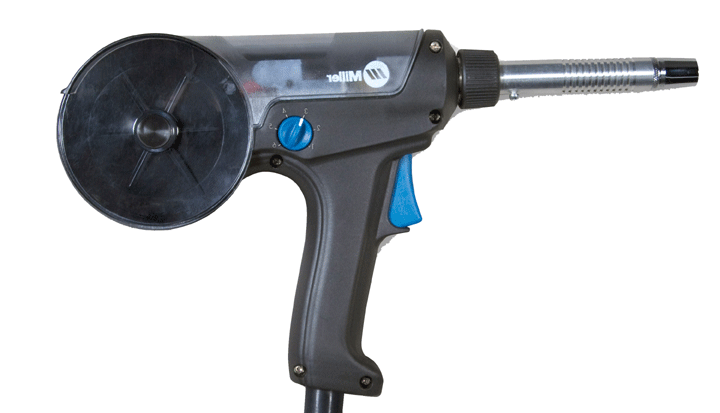

MILLER 252 SPOOLMATE 200(300497) (90 Day Warranty) 150 amps in Argon gas SPOOLMATE 30-A (1 Year Warranty)   200 amps in Argon gas

NOTE: BOTH MILLER GUNS CONNECT DIRECTLY TO THE MILLER 252-BUT NOT ALL MILLER MIGS. TO CONNECT TO OTHER MILLER MIG MACHINES YOU HAVE TO PURCHASE AN ADDITIONAL EXPENSIVE "BOX". ONCE YOU HAVE BOUGHT THE MILLER GUN-THEY HAVE GOT YOU!

1. Our spool guns have SUSTAINABLE TECHNOLOGY, this is term that will become of more and more important in the years to come! the revolution spool is totally maintainable-we stock every bolt, nut, screw, spring, part, and piece for this gun-IN STOCK! Check with your local "youkal" welding supply what they stock for their spool gun????

2. The Weldmart spool guns uses the solid state DC motor control in the control box-nothing else to buy-plug and WELD!. The advantage of the electronic control is simple; at the slowest speed (1RPM) you have full motor torque. The control assures that you have consistent wire feed speed at any speed setting with all sizes of wire.

  CLICK HERE TO VIEW THE SPOOL GUN BREAKDOWN.
3.  The Weldmart spool guns use the industry standard four inch spools of wire available anywhere!  Aluminum, mild steel, stainless steel, copper, silicone-bronze, aluminum-bronze and many more alloys are available on these "standard size spools". Many suppliers use only "proprietary-oddball" spool design that locks you into expensive OEM wire supply. Ask your supplier's salesperson where wire for their gun can be purchased? If only from them; enquire as to the weight of the wire (don't be confused with length of wire on a spool-it is a ruse). How many pounds of wire is on the OEM spool-how much does it cost per pound, once you have bought their gun-they've got you!
     CLICK ON THE ENVELOPE TO SEND US A MESSAGE!
CALL US AT: 1-800-460-6474 (U.S.)             INTERNATIONAL: 281-432-0250                SEND US A FAX AT: 281-749-8117
